244-21300-15 | ept

Female connector, 125 pole, pitch 2 mm, straight, 244-21300-15

Order No.: 56F7632
EAN: 4099891037611
MPN:
244-21300-15
ept

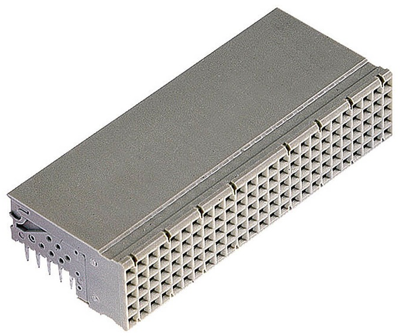

244-21300-15 ept Hard Metric Connectors Image 1
244-21300-15 ept Hard Metric Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.8318 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
3.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.8318 €

PCB connectors, 2.0 mm Hardmetric, type ept 243-../244-.

Compliant with IEC 61076-4-101. With 2.0 mm grid for direct 90 degree connection of PCBs up to 2.8 mm thickness (press-fit technology, quality class 2), suitable for in-line installation, with chamfered edges; Contact material: gold-plated bronze. Insulator: glass fiber-reinforced polyester. Insulation resistance min. 10^4 Mohm. Operating current at +20° C: 1.5 A. Useful life: > 250 insertion/ removal cycles. Each male connector can be equipped with pin contacts of different lengths (A 8.25 mm. B 9.75 mm and 11.25 mm). Pins C of the outer pin rows f and z are advanced in order to contact the shielding plates of the female connector.

Female connectors design B25, type 244-1.

125-pole.

Type: 244–21300–15, female connector, shielded

Technical specifications
Connection press-in connection
Design B25
Contact type socket
contact surface gold-plated
Rated current 1 A
Orientation straight
Pin number 125 pole
Grid 2 mm
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
