264-60303-12 | ept
Female connector, 2 mm, 125 °C, 1.7 mA, 264-60303-12
Order No.: 56F7722
EAN: 4099891035709
MPN:
264-60303-12
Unit Price (€ / pc.)
13.5660 € *
Available: 142 pcs.
Leadtime: 5 Weeks **
Total Price:
13.57 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5660 €
10 pcs.
12.4831 €
50 pcs.
11.3526 €
100 pcs.
10.2221 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connectors PC/104-Plus, type ept 264-.../272-.
2.0 mm grid, four rows, press-fit technology, quality class 3. For horizontal interconnection of several boards; Contact material: gold-plated copper alloy. Operating current: max. 1.7 A. Operating voltage: 100 V. Insulator: PBT. Insulation resistance: > 10exp6 Mohm.
Female connectors, 120-pole, type 264-60303-.

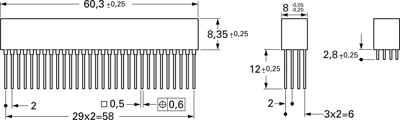

Type: 264–60303–12, pin length 12.2 mm
Technical specifications
| Connection | press-fit pin | |
| Version | PC/104-Plus socket header | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Pin number | 120 pole | |
| Grid | 2 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
