272-30000-31 | ept
Male header, 2 mm, 125 °C, 1.7 mA
Order No.: 56F7724
EAN: 4099891035716
MPN:
272-30000-31
Unit Price (€ / pc.)
3.9151 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Connectors PC/104-Plus, type ept 264-.../272-...
2.0 mm grid, four rows, press-fit technology, quality class 3. For horizontal interconnection of several boards. Contact material: gold-plated copper alloy. Operating current: max. 1.7 A. Operating voltage: 100 V. Insulator: PBT. Insulation resistance: > 10exp6 Mohm.
Pin headers, type 272-3.

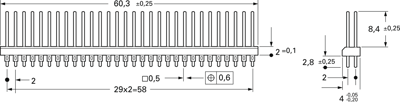

60-pole, double-row, can be inserted in parallel; Pin length: 8.4 mm.
Type: 272 - 30000 - 31, pin header
Technical specifications
| Connection | press-fit pin | |
| Version | PC/104-Plus pin header | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Pin number | 60 pole | |
| Grid | 2 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
