962-60326-03 | ept

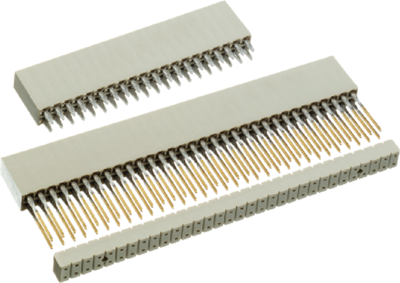

Female connector, 2.54 mm, 125 °C, 1.9 mA, 962-60326-03
Connectors PC/104, type ept 962-.

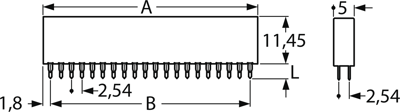

2.54 mm grid, dual row, suitable for parallel installation for horizontal board-to-board connections; Operating current: max. 1.9 A. Operating voltage: 150 V. Insulation resistance: > 10exp6 Mohm. Contact resistance: max. 20 mohm. Quality class: II. Contact material: gold-plated copper alloy. Insulator: PBT to UL 94 V-0. Dimension A: 51.86 mm (40-pole), 82.34 mm (64-pole). Dimension B: 48.26 mm (40-pole), 78.74 mm (64-pole). Note: The female connectors with 12.2 mm connection length are supplied a mechanical guide for stabilization in the adapter zone and to maintain the standardized clearance.
Female connectors with press-fit technology.
Technical attributes (type, number of poles, connection length L): 962-60326-03, 64-pole, L 3.4 mm
| Connection | press-fit pin | |
| Version | PC/104 socket header | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Pin number | 64 pole | |
| Grid | 2.54 mm |
| Country of origin | DE |
| Customs tariff number | 85389099 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
