064093 | ERNI

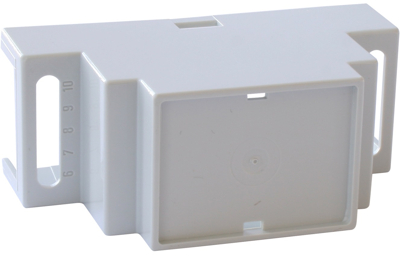

Upper part of housing, PPE/PC, (L x W x H) 86 x 35 x 49 mm, gray, for print terminals, 064093
Abgekündigt
DIN rail mount enclosure, 064093, ERNI
For simple snap mounting on standard DIN rails compliant with EN 50022, sizes according to DIN 43880, size 1, connections vary; depending on the design: PCB terminal with grid 5.0/5.08 mm, pin headers with 5.0/5.08 mm grid or front connectors in closed housing. Features: 2 expansion boards can be plugged vertically or horizontally onto the mainboard and are held in place reliably, the translucent lid protects the display, the operating elements and controls, pre-installed clip in the base shell. Degree of protection: IP 20. Operating temperatures: -40 to +100 °C, base shell made of PPO (UL 94 V-0), black, upper part made of PC (UL 94 V-1), gray, lid made of PC, translucent.
Top shell, type IDG-B2.
Base dimensions: 35 x 86 x 49 mm.
Type: 064093, for PCB terminals.
| Type of mounting | Schraube | |
| Width | 35 mm | |
| Colour | grau | |
| Suitable for | Printklemmen | |
| Height | 49 mm | |
| Length | 86 mm | |
| Material | PPE/PC | |
| Product type | Gehäuseoberteil |
| Country of origin | DK |
| Customs tariff number | 85389099 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
