374544 | ERNI

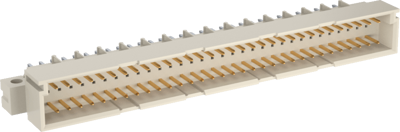

Male connector, type C, 64 pole, a-c, pitch 2.54 mm, solder pin, straight, gold-plated, 374544
Male connector DIN 41612, type ERNI STV.
Operating current +20/70 °C: 4.0/2.0 A. Test voltage: contact to contact 1000 V, contact/ground 1550 V.Leakage and air gap between contacts: 1.2 mm. Contact resistance: max. 20 mohm. Insulation resistance: min. 1000 Gohm. Basic grid: 2.54 mm. Housing material: polybutylene terephthalate (PBT) flame-resistant to UL 94 V-0, or polycarbonate (PC) self-extinguishing to UL 94 V-1. Pulling force per contact: min. 0.15 N. Operating temperatures: - 60 to +125 °C. Certifications and standards: DIN 41612, IEC 603-2, UL, CSA. Type designations ending in VG correspond to VG 95324 requirements.
Male connector C, straight, 4.0 mm solder pins, type ERNI 374.
Contact assignment: a-c fully assembled, solder pins for 1.0 mm bores.
Type: 374544, 64-pole, a-c, PBT, class 2
| Anforderungsstufe | 2 | |
| Anschluss | Lötstift | |
| Bauform | C | |
| Kontaktart | Stift | |
| Kontaktoberfläche | vergoldet | |
| Kontaktreihenbelegung | a-c | |
| Orientierung | gerade | |
| Polzahl | 64-polig | |
| Rastermaß | 2.54 mm |
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
