424654 | ERNI
Female connector, type H11, 11 pole, b, pitch 5.08 mm, solder pin, straight, silver-plated, 424654
Female connector DIN 41612, type ERNI STV.
With hard silver-plated contacts. The electrical and mechanical useful life of these contacts corresponds with performance class 1. Operating current +20/70 °C: 20/15 A. Test voltage: contact to contact 3100 V, contact/ground 3100 V.Leakage and air gap between contacts: 8.0 mm/4.5 mm. Contact resistance: max. 8.0 mohm. Insulation resistance: min. 1000 Gohm. Basic grid: 5.08 mm. Housing material: polycarbonate (PC) self-extinguishing to UL 94 V-1. Pulling force per contact: min. 0.15 N. Operating temperatures: - 60 to +125 °C. Certifications and standards: DIN 41612, IEC 603-2, UL, CSA. Type designations ending in VG correspond to VG 95324 requirements.

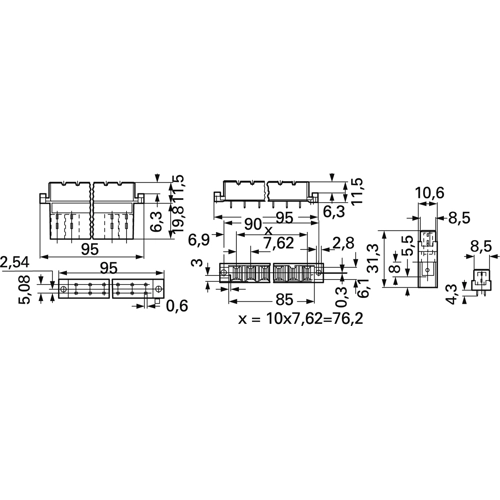

Female connector H11, straight, 4.3 mm solder pins, type 424.
With 0.6 x 0.6 mm solder pins. Contact assignment: 11-pole: row b fully assembled.
Technical attributes (type, number of poles, contact assignment, leading contact position): 424654, 11 - pole, b
| Connection | solder pin | |
| Design | H11 | |
| Contact type | socket | |
| contact surface | silver-plated | |
| Contact row assignment | b | |
| Rated current | 15 A | |
| Orientation | straight | |
| Pin number | 11 pole | |
| Grid | 5.08 mm |
| Country of origin | SI |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
