284698 | ERNI

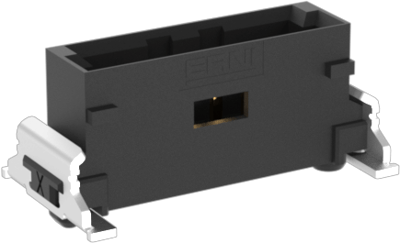

Pin header, 6 pole, pitch 1.27 mm, straight, black, 284698
Order No.: 58F5136
EAN: 4099891003258
MPN:
284698
Unit Price (€ / pc.)
2.3205 € *
Available: 52 pcs.
Next delivery: 1,950 pcs. on 2025-03-04
Leadtime: On Request **
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3205 €
10 pcs.
2.1301 €
50 pcs.
1.9278 €
100 pcs.
1.7374 €
*incl. VAT plus shipping costs
**Subject to prior sale

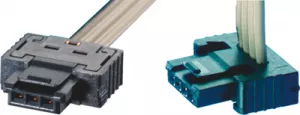

Connectors series SRC, type ERNI MiniBridge.
Grid 1.27 mm; Housing: LCP to UL 94 V-0. Current rating: 4.0 A at +20 °C. Dielectric strength contact/contact: 500 VRMS. Contact resistance: max. 25 mohm. Useful life: 500 insertion/removal cycles. Operating temperatures: –55 to +125 °C.
Male connectors P, straight, SMD terminals, type 214../234.
Technical attributes (type, number of poles): 284698, 6–pole
Technical specifications
| Anschluss | SMD | |
| Anschlussoberfläche | vergoldet | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | vergoldet | |
| Nennstrom | 3.7 A | |
| Orientierung | gerade | |
| Polzahl | 6-polig | |
| Rastermaß | 1.27 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
