839034 | ERNI
Connection cable, 100 mm, socket angled to socket angled, 0.129 mm², AWG 26, 839034
Nicht mehr im Sortiment
Unit Price (€ / pc.)
9.8056 € *
Available: 205 pcs.
Leadtime: 70 Weeks **
Total Price:
9.81 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8056 €
10 pcs.
8.6275 €
50 pcs.
8.0444 €
150 pcs.
7.6874 €
500 pcs.
7.2947 €
*incl. VAT plus shipping costs
**Subject to prior sale

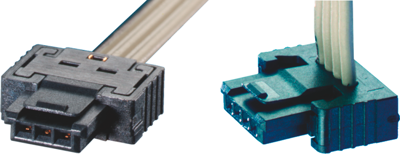

Female connectors dressed with flat ribbon cable, type 839.
Both ends with female connectors and flat ribbon cable AWG 26, with PVC insulation and red pilot wire; Operating voltage: max. 300 V. Current rating: 2.8 A at +20 °C, temperature range: - 20 to +105 °C, flame retard
With 2 female connectors, 90° cable exit, type 839.
Type: 839034, 6-pole, 100 mm
Technical specifications
| Anschluss (1) | Buchse | |
| Anschluss (2) | Buchse | |
| Ausführung | Verbindungsleitung | |
| AWG-Leiterquerschnitt | AWG 26 | |
| Bauform Anschluss 1 | abgewinkelt | |
| Bauform Anschluss 2 | abgewinkelt | |
| Kabellänge | 100 mm | |
| Leiterquerschnitt | 0,129 mm² |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
