0130CDK | Ersa

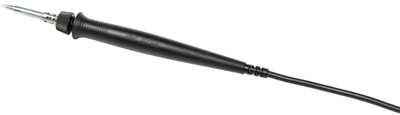

Soldering iron, Ersa 0130CDK, 80 W, 16.5 V
Unit Price (€ / pc.)
105.91 € *
Available: 0 pcs.
Leadtime: On Request **
Soldering iron, 0130CDK, Ersa
i-TOOL PICO soldering iron, 80 W micro heating element: New heating technology for ultra fastest heat-up and recoating of the i- TOOL PICO soldering iron (0130CDK): room temperature of 662°F in ca. 9 sec.,on Stand-by modus (536 °F) in ca. 3 sec. The heating element (010102J)and Soldering tip (series 102) are separated. Soldering iron with packaging, equiped with ERSADUR-LF Long-life soldering tip 0102CDLF16/SB for the i-Con PICO soldering station
Technical specifications
| Version | soldering iron | |
| Input voltage | 16.5 V | |
| Suitable for | i-CON PICO | |
| Power | 80 W | |
| Soldering tip series | 102 | |
| max. operating temperature | 450 °C | |
| min. operating temperature | 150 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85151100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
