0IC1305 | Ersa
Soldering station kit, Ersa 0IC1305, 80 W, 230 V
Order No.: 10L7217
EAN: 4003008153675
MPN:
0IC1305
i-CON PICO MK2 /230V
Unit Price (€ / pc.)
204.9180 € *
Available: 0 pcs.
Leadtime: 1 Week **
Soldering station, 0IC1305, Ersa

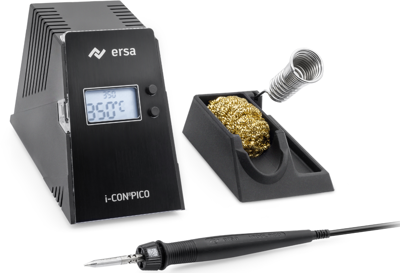

The 0IC1305 is a soldering station, complete, with i-TOOL PICO MK2 soldering iron, soldering tip and holder with dry sponge. In addition to the continuously variable temperature control via the two buttons next to the easy-to-read LC display, three fixed temperatures and three energy levels can be individually set via PC software and microSD card so that the user can quickly switch between the parameters depending on the soldering job. The standby function protects the soldering tip and significantly increases its service life.
Technical specifications
| Version | soldering station | |
| ESD protection | No | |
| Power | 80 W | |
| max. operating temperature | 450 °C | |
| min. operating temperature | 150 °C | |
| Voltage | 230 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85151990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
