0832GDLF/10 | Ersa

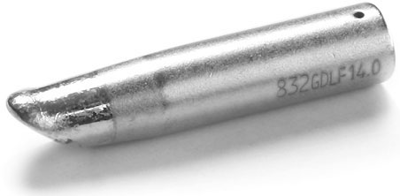

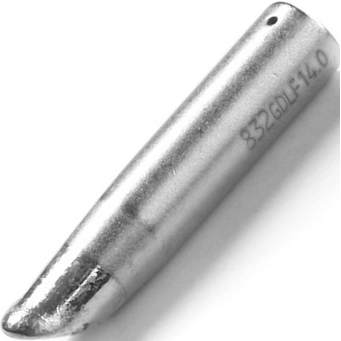

Name: Soldering tip, pencil point, (T x L x W) 14 x 35 x 9.8 mm, 0832GDLF/10
Brand: Ersa
SKU: 04L312
Availability: OutOfStock

Soldering tip, pencil point, (T x L x W) 14 x 35 x 9.8 mm, 0832GDLF/10

Order No.: 04L312

EAN: 4099891397814

MPN:

0832GDLF/10

Image may differ

Key Specification:

Version soldering tip

Peak type pencil point

Suitable for ERGO TOOL, POWER TOOL, ANALOG 60/60 A, ANALOG 80/80 A, DIGITAL 80 A, ELS 8000/M/D, ERSA 15+/25+/35+, MS 6000, MS 8000/D, MULTI-PRO, MULTI-SPRINT, MULTI-TC/PTC 70, RDS 80

Thickness 14 mm

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Soldering tip, pencil point, Ø 9.8 mm, (T x L x W) 14 x 35 x 14 mm, 0832GDLF/SB

Order No.: 04L313

Manufacturer: Ersa

per pc. 19.5874 € *

*incl. VAT plus shipping costs

Description

Soldering tip, 0832GDLF/10, Ersa

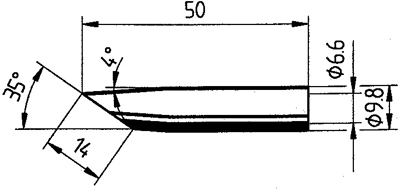

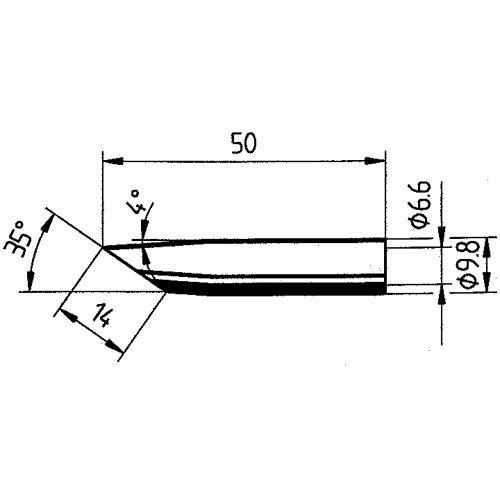

ERSADUR soldering tip lead free, for following soldering irons: ERSA 25+ (0E025CD), ERSA 35+ (0E035VD), MULTI-TC (0760ED), RT 80(0890CD) and POWER TOOL (0840CDJ). Angled face 35°, 14.0 mm

Technical specifications

	Version	soldering tip
	Width	9.8 mm
	Thickness	14 mm
	Suitable for	ERGO TOOL, POWER TOOL, ANALOG 60/60 A, ANALOG 80/80 A, DIGITAL 80 A, ELS 8000/M/D, ERSA 15+/25+/35+, MS 6000, MS 8000/D, MULTI-PRO, MULTI-SPRINT, MULTI-TC/PTC 70, RDS 80
	Length	35 mm
	Peak type	pencil point
