0832MDLF/SB | Ersa

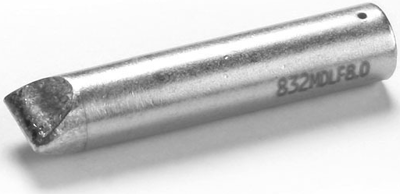

Soldering tip, Chisel shaped, Ø 9.8 mm, (L x W) 50 x 8 mm, 0832MDLF/SB
Unit Price (€ / pc.)
19.5874 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
19.59 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5874 €
5 pcs.
18.5997 €
10 pcs.
17.6715 €
*incl. VAT plus shipping costs
**Subject to prior sale
Soldering tip, 0832MDLF/SB, Ersa
ERSADUR soldering tip, lead free, for following soldering irons: ERSA 25+ (0E025CD), ERSA 35+ (0E035VD), MULTI-TC (0760ED), RT 80(0890CD) and POWER TOOL (0840CDJ). Angled face both sides, 8.0 mm

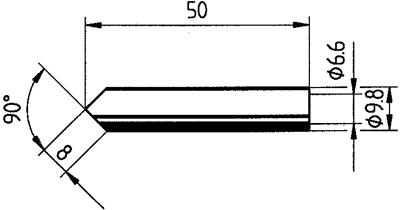

Technical specifications
| Version | soldering tip | |
| Width | 8 mm | |
| diameter | 9.8 mm | |
| Suitable for | ERGO TOOL, POWER TOOL, ANALOG 60/60 A, ANALOG 80/80 A, DIGITAL 80 A, ELS 8000/M/D, ERSA 15+/25+/35+, MS 6000, MS 8000/D, MULTI-PRO, MULTI-SPRINT, MULTI-TC/PTC 70, RDS 80 | |
| Length | 50 mm | |
| Peak type | Chisel shaped |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85159080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
