1038323 | ESKA Erich Schweizer
Microfuses 10.3 x 38 mm, 4 A, T, 500 V (AC), 120 kA breaking capacity, 1038323
Unit Price (€ / pc.)
1.2733 € *
Available: 12 pcs.
Leadtime: 13 Weeks **
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2733 €
10 pcs.
1.1424 €
50 pcs.
1.0829 €
100 pcs.
1.0115 €
500 pcs.
0.9163 €
*incl. VAT plus shipping costs
**Subject to prior sale

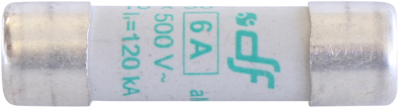

Micro fuse, 1038323, ESKA
The 1038323 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Low rated current
- High rated voltage
- High breaking capacity
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | T | |
| Ausschaltvermögen | 120 kA | |
| Bauform | 10,3 x 38 mm | |
| Durchmesser | 10.3 mm | |
| Gehäuse | Keramikrohr | |
| Länge | 38 mm | |
| Nennspannung (AC) | 500 V | |
| Nennstrom | 4 A |
Download
Logistics
| Ursprungsland | ES |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
