520522 | ESKA Erich Schweizer
Microfuses 5 x 20 mm, 3.15 A, F, 250 V (AC), 1.5 kA breaking capacity, 520522
Unit Price (€ / pc.)
0.2344 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
0.23 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2344 €
500 pcs.
0.2130 €
*incl. VAT plus shipping costs
**Subject to prior sale

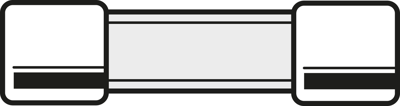

Micro fuse, 520522, ESKA
The 520522 is a quick-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material ceramic tube with extinguishing agent
- High rated voltage
- High breaking capacity
- Contact caps Brass, nickel plated
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 1.5 kA | |
| Bauform | 5 x 20 mm | |
| Durchmesser | 5 mm | |
| Gehäuse | Keramikrohr | |
| Länge | 20 mm | |
| Nennspannung (AC) | 250 V | |
| Nennstrom | 3.15 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
