522707 | ESKA Erich Schweizer
Microfuses 5 x 20 mm, 100 mA, T, 250 V (AC), 1.5 kA breaking capacity, 522707
Unit Price (€ / pc.)
0.3689 € *
Available: 10 pcs.
Leadtime: 4 Weeks **
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3689 €
50 pcs.
0.3451 €
100 pcs.
0.3070 €
500 pcs.
0.2844 €
*incl. VAT plus shipping costs
**Subject to prior sale

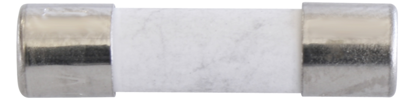

Micro fuse, 522707, ESKA
The 522707 is a time-lag fuse, it is used for surge-withstand, and has a ceramic tube body that is designed to IEC specifications.
Features
- Construction is with ceramic tube with extinguishing agent
- Contact caps brass, nickel plated
- Time-lag
Technical specifications
| Version | microfuses | |
| Tripping characteristics | T | |
| Breaking capacity | 1.5 kA | |
| Design | 5 x 20 mm | |
| diameter | 5 mm | |
| Enclosure | ceramic tube | |
| Length | 20 mm | |
| Rated voltage (AC) | 250 V | |
| Rated current | 100 mA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85361010 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
