887006 | ESKA Erich Schweizer

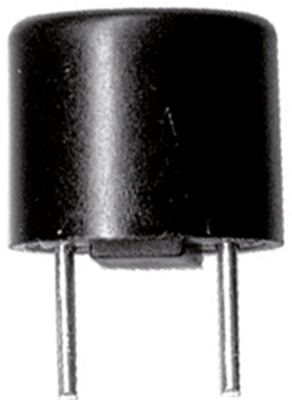

Micro fuse 8.35 x 7.7 mm, 80 mA, T, 250 V (AC), 35 A breaking capacity, 887006

Order No.: 50G830
EAN: 4099889094596
MPN:
887006
887.006
Series: 887.000
ESKA Erich Schweizer
887006 ESKA Erich Schweizer Micro Fuses
Image may differ

No longer available from manufacturer

Unit Price (€ / pc.)
1.0115 € *
Available: 80 pcs.
Leadtime: 17 Weeks **
Total Price:
5.06 € *
Price list
Quantity
Price per unit*
5 pcs.
1.0115 €
10 pcs.
0.8449 €
50 pcs.
0.7735 €
100 pcs.
0.7021 €
500 pcs.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale

Micro fuse, 887006, ESKA

The 887006 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.

Features

  • Temperature resistant thermoplastic body
  • High rated voltage
  • High breaking capacity
  • Pluggable/Solderable
Technical specifications
Version micro fuse
Tripping characteristics T
Breaking capacity 35 A
Design 8.35 x 7.7 mm
diameter 8.35 mm
Height 7.7 mm
Rated voltage (AC) 250 V
Rated current 80 mA
Logistics
Country of origin CN
Customs tariff number 85361010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
