887009 | ESKA Erich Schweizer

Micro fuse 8.35 x 7.7 mm, 160 mA, T, 250 V (AC), 35 A breaking capacity, 887009

Order No.: 50G836
EAN: 4099889094626
MPN:
887009
887.009
Series: 887.000
ESKA Erich Schweizer

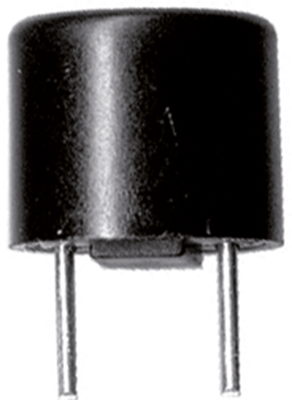

887009 ESKA Erich Schweizer Micro Fuses
Image may differ

No longer available from manufacturer

Unit Price (€ / pc.)
1.0115 € *
Available: 10 pcs.
Leadtime: On Request **
Total Price:
5.06 € *
Price list
Quantity
Price per unit*
5 pcs.
1.0115 €
10 pcs.
0.8449 €
50 pcs.
0.7735 €
100 pcs.
0.7021 €
500 pcs.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale

Micro fuse, 887009, ESKA

The 887009 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.

Features

  • Temperature resistant thermoplastic body
  • High rated voltage
  • High breaking capacity
  • Pluggable/Solderable
Technical specifications
Version micro fuse
Tripping characteristics T
Breaking capacity 35 A
Design 8.35 x 7.7 mm
diameter 8.35 mm
Height 7.7 mm
Rated voltage (AC) 250 V
Rated current 160 mA
Logistics
Country of origin CN
Customs tariff number 85361010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
