887010 | ESKA Erich Schweizer
Micro fuse 8.35 x 7.7 mm, 200 mA, T, 250 V (AC), 35 A breaking capacity, 887010
As an alternative, we recommend the following item:
Micro fuse 8.5 x 8 mm, 200 mA, T, 250 V (AC), 100 A breaking capacity, 887110
Order No.: 50G761
Manufacturer: ESKA Erich Schweizer
per pc. 0.4165 € *
*incl. VAT plus shipping costs

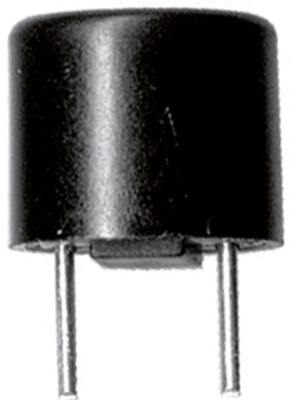

Micro fuse, 887010, ESKA
The 887010 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Temperature resistant thermoplastic body
- High rated voltage
- High breaking capacity
- Pluggable/Solderable
Technical specifications
| Ausführung | Kleinstsicherung | |
| Auslösecharakteristik | T | |
| Ausschaltvermögen | 35 A | |
| Bauform | 8,35 x 7,7 mm | |
| Durchmesser | 8.35 mm | |
| Höhe | 7.7 mm | |
| Nennspannung (AC) | 250 V | |
| Nennstrom | 200 mA |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85361010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
