UL520607 | ESKA Erich Schweizer

Microfuses 5 x 20 mm, 100 mA, F, 250 V (AC), 35 A breaking capacity, UL520607

Order No.: 42G635
EAN: 4099889085372
MPN:
UL520607
UL520.607
Series: UL520.600
ESKA Erich Schweizer
UL520607 ESKA Erich Schweizer Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.2939 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
0.29 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2939 €
500 pcs.
0.2689 €
*incl. VAT plus shipping costs
**Subject to prior sale

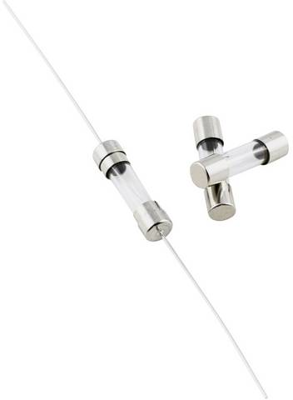

Micro fuse, UL520.607, ESKA

The UL520.607 is a quick-acting fuse and it is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.

Features

  • Construction is with cylindrical glass tube without extinguishing agent
  • Contact caps brass, nickel plated
  • Quick-acting
Technical specifications
Version microfuses
Tripping characteristics F
Breaking capacity 35 A
Design 5 x 20 mm
diameter 5 mm
Enclosure glass tube
Length 20 mm
Rated voltage (AC) 250 V
Rated current 100 mA
Logistics
Country of origin CN
Customs tariff number 85361010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
