UL632609 | ESKA Erich Schweizer
Microfuses 6.3 x 32 mm, 160 mA, F, 250 V (AC), 35 A breaking capacity, UL632609
Unit Price (€ / pc.)
0.2939 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
0.29 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2939 €
500 pcs.
0.2689 €
*incl. VAT plus shipping costs
**Subject to prior sale

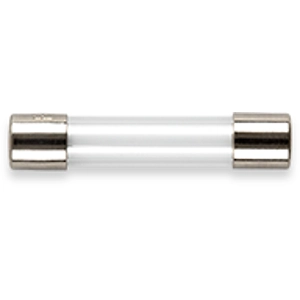

Micro fuse, UL632.609, ESKA
The UL632.609 is a quick-acting fuse and it is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Construction is with cylindrical glass tube without extinguishing agent
- Contact caps brass, nickel plated
- Quick-acting
Technical specifications
| Version | microfuses | |
| Tripping characteristics | F | |
| Breaking capacity | 35 A | |
| Design | 6.3 x 32 mm | |
| diameter | 6.3 mm | |
| Enclosure | glass tube | |
| Length | 32 mm | |
| Rated voltage (AC) | 250 V | |
| Rated current | 160 mA |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85361010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
