UL632719 | ESKA Erich Schweizer

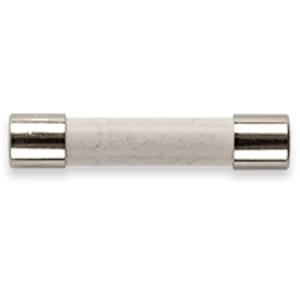

Microfuses 6.3 x 32 mm, 1.6 A, T, 250 V (AC), 100 A breaking capacity, UL632719
Unit Price (€ / pc.)
0.7378 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
100 pcs.
0.7378 €
500 pcs.
0.6783 €
*incl. VAT plus shipping costs
**Subject to prior sale
Micro fuse, UL632.719, ESKA
The UL632.719 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Construction cylindrical ceramictube with extinguishing agent
- Contact caps brass, nickel plated
- Time-lag
Technical specifications
| Version | microfuses | |
| Tripping characteristics | T | |
| Breaking capacity | 100 A | |
| Design | 6.3 x 32 mm | |
| diameter | 6.3 mm | |
| Enclosure | ceramic tube | |
| Length | 32 mm | |
| Rated voltage (AC) | 250 V | |
| Rated current | 1.6 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85361010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
