05646 | EXACT

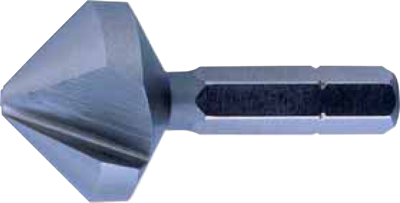

Taper/deburring countersink bit, M10, Ø 20.5 mm, 1/4" bit, 41 mm, steel, DIN 355-C/DIN 3126, 05646
Order No.: 07L9060
EAN: 4099891377939
MPN:
05646
Unit Price (€ / pc.)
23.562 € *
Available: 0 pcs.
Leadtime: On Request **
HSS cone/deburring countersink bits, type EXACT 056.
With countersunk head in accordance with DIN 335 C and 1/4 inch hexagon shaft in accordance with DIN 3126. 90° countersink bit with three cutting edges (slop-back-ground, axial and radial) for countersunk screws, oval countersunk head screws, self-cutting screws, thread-cutting screws, countersunk wood screws and oval countersunk head wood screws; Design: for manual and machine applications (direct receptacle e.g. for cordless screwdriver) for deburring, chamfering and countersinking.
Technical attributes (type, rated diameter (D), for countersinks (M), overall length (L)): 05646, D 20.5 mm, M 10, L 41 mm
Technical specifications
| diameter | 20.5 mm | |
| For grommets | M10 | |
| Length | 41 mm | |
| Material | Stahl | |
| Standard number | DIN 355-C/DIN 3126 | |
| Product type | Kegel-/Entgratsenker-Bit | |
| shank | 1/4" Bit |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82077031 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
