HD750 | Extech
Extech differential pressure manometer, HD750
Unit Price (€ / pc.)
243.4026 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
243.40 € *
Price list
Quantity
Price per unit*
1 pcs.
243.4026 €
5 pcs.
219.0671 €
*incl. VAT plus shipping costs
**Subject to prior sale

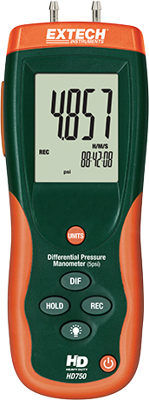

Differential Pressure Manometer, HD750, extech
Offering 11 selectable units of measure, the HD750 Differential Pressure Manometer can serve as a low range/high resolution Gauge or provide Differential Pressure up to 0 to 138.3 in. H2O (inches of water). Max/Min recording and Relative time stamp are useful features, as are HD750's Data Hold and Auto Power Off functions. The 5psi HD750 also features Zero function for offset correction or measurement and a built-in USB interface. Comes complete with 9V battery, software with USB cable, AC Adaptor, connection hose, built-in stand, and hard carrying case.
Features
- ±5psi range, 11 Selectable units of measure
- Max/Min/Avg recording and Relative time stamp
- Data Hold, Auto power off and Zero function
- Large LCD display with backlighting
- Heavy duty, double-molded housing
- Built-in USB port (Windows® compatible PC software and cable included)
Technical specifications
| Auflösung | 0,001 psi, 0,1 mbar | |
| Ausführung | Differenzdruck-Manometer | |
| Genauigkeit | ±3 % | |
| max. Temperatur | 50 °C | |
| Messbereich | 5 psi, 344,7 mbar | |
| min. Temperatur | 0 °C |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| SVHC frei | Yes |
