382275 | Extech
Laboratory power supply, 0 bis 30 VDC, outputs: 1 (20 A), 1 to 20 A, 150 VAC, 382275
Order No.: 22K0338
EAN: 4099891480264
MPN:
382275
Unit Price (€ / pc.)
535.0002 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
535.00 € *
Price list
Quantity
Price per unit*
1 pcs.
535.0002 €
5 pcs.
481.4978 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supply, 382275, extech

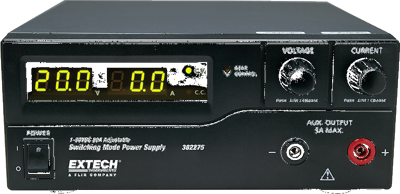

The Extech 382275 Power Supply is an easy-to-configure, lab-quality, highly stable DC power supply with a maximum output power of 600 watts. The new DC power supply offers two degrees of control over both current and voltage outputs (coarse and fine adjustment). The output is adjustable from 0 to 30 volts DC and 0 to 20 amps with (0.1 volts/amp resolution). Two green LED indicators provide easy-to-read, high-contrast displays of voltage and current values.
Features
- Remote control for output voltage/current and on/off
- Two user-defined voltage and current presets and one 13.8V/20A factory preset
- Automatic constant current crossover
- Double 3-digit LED displays
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 0 bis 30 VDC | |
| Ausgangsstrom | 20 A | |
| Breite | 200 mm | |
| Eingangsspannungsbereich | 150 VAC | |
| Höhe | 90 mm | |
| Tiefe | 215 mm | |
| Ausgangsstrombereich | 1 bis 20 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| SVHC frei | Yes |
