380976-K-NIST | Extech

Name: TRMS AC power clamp meter 380976-K-NIST, 1000 A (AC), 600 V (DC), 600 V (AC), opening 40 mm, CAT III 600 V
Brand: Extech
SKU: 22K0818
Price: 529.31 EUR
Availability: OutOfStock

TRMS AC power clamp meter 380976-K-NIST, 1000 A (AC), 600 V (DC), 600 V (AC), opening 40 mm, CAT III 600 V

Order No.: 22K0818

EAN: 4099891457112

MPN:

380976-K-NIST

Image may differ

Key Specification:

Product type AC-Leistungsmesszange

TRMS possible Yes

Pliers opening 40 mm

Surge voltage category CAT III 600 V

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

529.3120 € *

Available: 0 pcs.

Leadtime: On Request **

Total Price:

529.31 € *

Price list

Quantity

Price per unit*

1 pcs.

529.3120 €

5 pcs.

476.3808 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

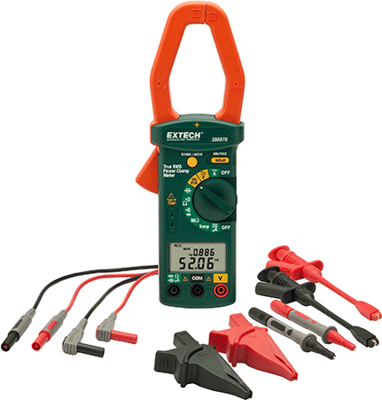

Power Clamp Meter Kit, 380976-K-NIST, extech

The 380976-K is a Single Phase/3 Phase 1,000 Amp AC Power Clamp Meter Kit. Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator. Auto Detect AC/DC Voltage measurements with simultaneous frequency display. In addition, the supplied test lead kit includes two CAT IV 72" test leads, 2 modular test probe handles, 2 plunger activated jaw clips, and 2 extra-large alligator clips. Complete with test lead kit, Type K probe, carrying case and 9V battery.

Features

1.6" (40mm) clamp jaw opening and large dual LCD display (9999 count)
Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator
AC+DC µA current with 10nA resolution for flame rod tests
Auto Detect AC/DC Voltage measurements with simultaneous frequency display
Capacitance to 7000µF with 0.001µF resolution
High Resistance tests to 100 MOhm
Type K, °C/°F switchable, temperature to 1000°F
Diode and Continuity tests

Technical specifications

	TRMS possible	Yes
	max. measured value (frequency)	40 Hz
	max. measured current value (AC)	1000 A
	max. resistance range	100 MΩ
	min. Measured value (frequency)	1 kHz
	Product type	AC-Leistungsmesszange
	max. voltage measuring range (AC)	600 V
	max. voltage measuring range (DC)	600 V
	Surge voltage category	CAT III 600 V
	Pliers opening	40 mm
