407790A | Extech

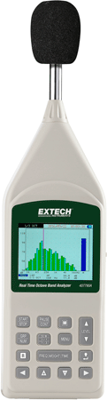

Real Time Octave Band Analyzer, 407790A, extech

Extech’s Type 2 Integrating Sound Level Meter with Octave and 1/3 Octave Band Real Time is displayed on a large 3.5" 320x240 TFT color backlit LCD.

Features

• Wide measurement in 5 ranges: 20 to 90dB, 20 to 100dB, 20 to 110dB, and 30 to 120dB, 40 to 130dB
• 3.5" (320x240) TFT color LCD with backlight feature displays Leq, LE, Lmax, Lmin, Lp, L05, L10, L50, L90, L95
• Stores readings on microSD card
• Precise linearity over wide range (100dB)
• Transferred data to a PC to be analyzed using software and cable provided
• A, C and Z weighting with Fast or Slow response
• 25Hz to 10kHz frequency response
• Meets ANSI and IEC Type 2 standards
• Internal self test when powered ON
