PQ3450 | Extech

Datalogging Power Analyzer, PQ3450, extech

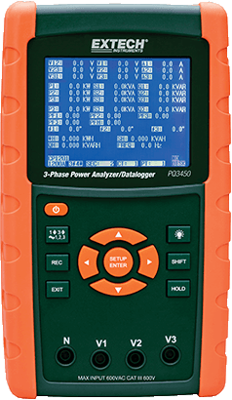

The PQ3450 is a 3-phase power analyzer/data logger capable of logging up to 30,000 sets of measurements in Excel format on a removable SD memory card. The product is easy-to-hold with a rugged over molded housing and features a built-in clock and calendar, 35 parameters and a CAT III 600V safety rating. Complete with a year warranty, 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240 Volt AC adaptor and case. Clamp probes sold separately.

Features

• Large, sunlight readable, numeric LCD display with backlight and user-friendly on-screen menu

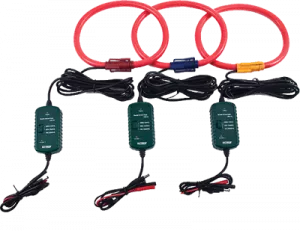

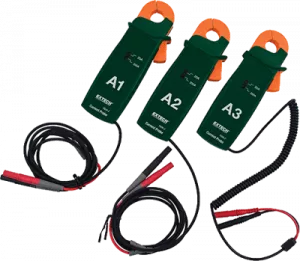

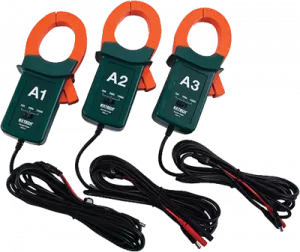

• Optional 200A, 1200A current clamps or 3000A flexible current probes (sold separately)
• Adjustable ratio of current transformer CT (1 to 600) and potential transformer PT (1 to 1000) for high power distribution systems
• Log up to 30,000 reads to a removable SD memory card in Microsoft Excel® format
• Wide sampling rate range (2 seconds to 2 hours)
• Built-in clock and calendar
• Complete with 4 voltage cables with crocodile clips, 8 AA batteries, SD card, 100-240V AC adapter and case
• Clamp probes are sold separately.
