48VFL11 | Extech

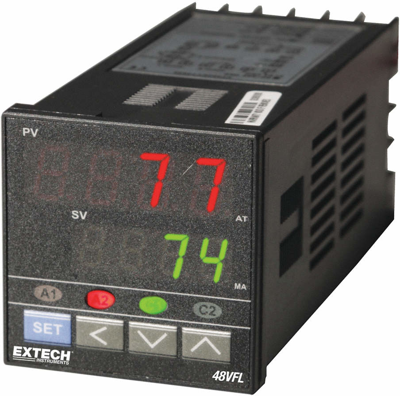

Temperature PID Controller, 48VFL11, extech

48VFL11 Temperature PID controller offers Fuzzy Logic enhanced PID and a Soft-Start feature that protects heaters from cold-starts. PID plus Fuzzy Logic tackles even the most demanding applications, eliminating over-shoot, unwanted process fluctuations, and drift. The Soft Start feature is ideally suited for processes, such as those employed in the Thermo-Plastics industry, where careful, exact, and slow heating of product is required. Accepts thermocouple and RTD inputs. Single stage Ramp and Soak program with Ramp-to-Set point Limit that can be combined with the Soft Start feature for critical process demands. Complete with mounting bracket hardware and screw terminals for easy wiring. Also available with 4-20mA output (48VFL13).

Features

• One relay output
• Dual 4-digit LED displays of process and setpoint values
• User friendly menus and tactile keypad for easy programming
• One-touch autotuning for quick setup & precise control
• Fuzzy Logic PID offers intuitive control simulating human control logic
• Two "Latching" alarm relays standard with 8 Alarm modes
• Accepts thermocouple and RTD inputs
