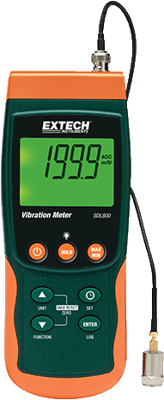

Vibration Meter/Datalogger, SDL800, extech

The SDL800 measures and datalogs vibration using a remote vibration sensor with magnetic adapter on 47.2"(1.2m) cable. It offers a wide frequency range of 10Hz to 1kHz with basic accuracy of ±(5% + 2 digits). Manually store 99 readings or continuously datalog using a SD memory card, which allows user to easily transfer collected data to a PC for further analysis as an Excel format. Complete with remote sensor, magnetic mount, 6 x AA batteries, SD card, and hard carrying case.

Features

• Remote vibration sensor with magnetic adapter on 47.2" (1.2m) cable
• Wide frequency range of 10Hz to 1kHz
• Basic accuracy of ±(5% + 2 digits); Meets ISO2954
• RMS, Peak Value or Max Hold measurement modes
• Adjustable data sampling rate
• Offset adjustment used for zero function to make relative measurements
• Large backlit LCD
• Stores 99 readings manually and continuous datalogging via SD memory card
• Record/Recall MIN, MAX, Data Hold and Auto power off
• Complete with remote sensor, magnetic mount, 6 x AA batteries, SD card, and hard carrying case
