4280CA01 | fastpoint
Cable gland, cabel-Ø 6.5 mm, PVC, black, 4280CA01
Order No.: 12H3547
EAN: 4099891195748
MPN:
4280CA01
Unit Price (€ / pc.)
0.3808 € *
Available: 865 pcs.
Leadtime: 5 Weeks **
Total Price:
0.38 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3808 €
10 pcs.
0.3213 €
100 pcs.
0.2761 €
500 pcs.
0.2511 €
1000 pcs.
0.2142 €
*incl. VAT plus shipping costs
**Subject to prior sale

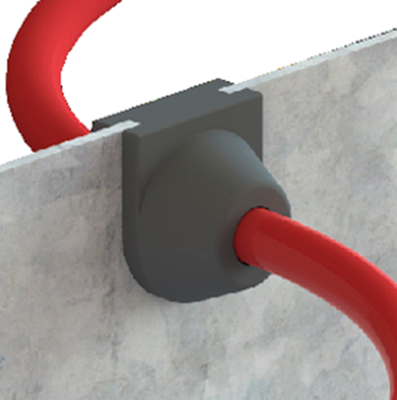

Grommets, type Fastpoint 42../10.
Slide into U-shaped panel cut-outs; Material: PVC. Operating temperatures: –25 to + 600 °C. Panel thickness (dimension H): 2.0 mm. Color: black.

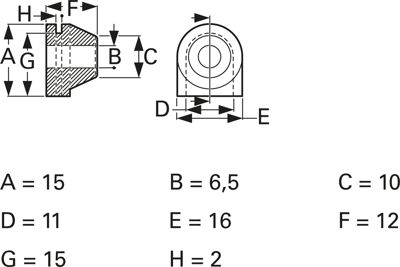

Technical attributes (type, cable diameter (ØB), dimensions (A, C, D, E, F, G)): 4280CA01, ØB 6.5, A, 18, C 10, D 11, E 16, F 12, G 15 mm
Technical specifications
| Version | U cable gland | |
| Colour | black | |
| Length | 18 mm | |
| Material | PVC | |
| max. operating temperature | 60 °C | |
| min. cable diameter | 6.5 mm | |
| min. operating temperature | -25 °C | |
| Mounting hole size | 15 mm | |
| Wall thickness | 2 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 40161000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
