2461AA00 | fastpoint
Spacer for circuit board, click engagement, Snap-on fastener, SW8, plain, 2461AA00
Order No.: 17H9902
EAN: 4099889464610
MPN:
2461AA00
Unit Price (€ / pc.)
0.2761 € *
Available: 518 pcs.
Leadtime: 5 Weeks **
Total Price:
0.28 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2761 €
10 pcs.
0.2416 €
100 pcs.
0.2071 €
1000 pcs.
0.1511 €
5000 pcs.
0.1380 €
*incl. VAT plus shipping costs
**Subject to prior sale

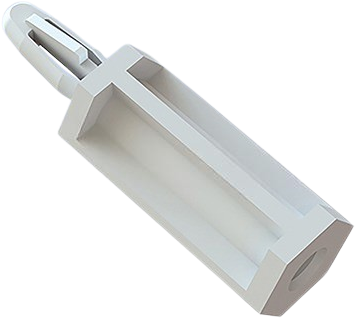

PCB spacer, 2461AA00, fastpoint

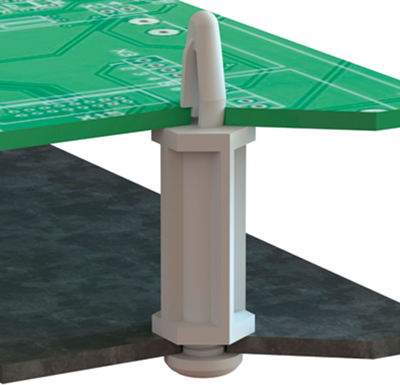

Snap-in mount on PCBs, with hole for self-tapping screws.; Screw hole: Ø 2.9 mm. PCB thickness: 1.0 to 2.0 mm. PCB perforation: 4.0 mm. Material: PA 6.6. Color: plain. Inflammability: UL94 V-2.

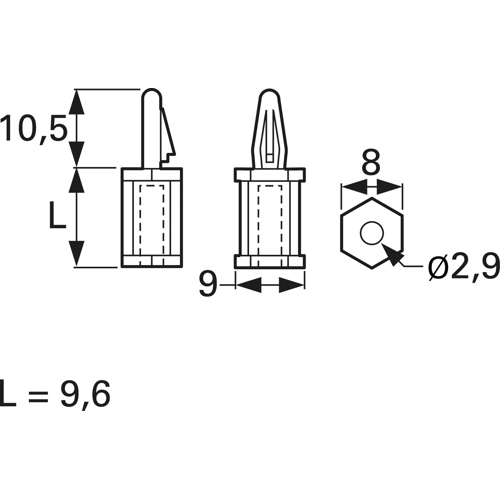

Type: 2461AA00, L 9.6 mm.
Technical specifications
| Version | spacer | |
| External thread length | 8 mm | |
| Hole size | 4 mm | |
| Bolt length | 9.6 mm | |
| Colour | natural | |
| Thread size | 2.9 mm | |
| Material | PA | |
| Panel thickness | 2 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
