2463AA00 | fastpoint
Spacer for circuit board, click engagement, Snap-on fastener, SW8, plain, 2463AA00
Order No.: 17H9906
EAN: 4099889464634
MPN:
2463AA00
Unit Price (€ / pc.)
0.2975 € *
Available: 4 pcs.
Leadtime: 5 Weeks **
Total Price:
0.30 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2975 €
10 pcs.
0.2559 €
100 pcs.
0.2190 €
1000 pcs.
0.1607 €
5000 pcs.
0.1464 €
*incl. VAT plus shipping costs
**Subject to prior sale

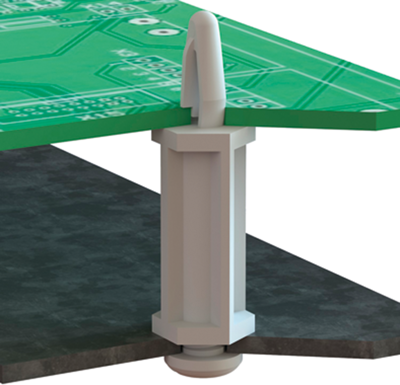

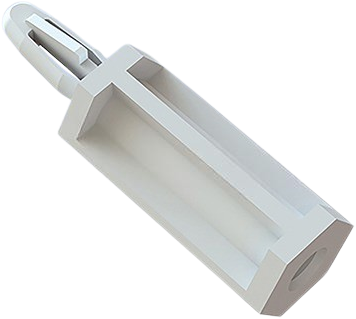

PCB spacer, 2463AA00, fastpoint
Snap-in mount on PCBs, with hole for self-tapping screws.; Screw hole: Ø 2.9 mm. PCB thickness: 1.0 to 2.0 mm. PCB perforation: 4.0 mm. Material: PA 6.6. Color: plain. Inflammability: UL94 V-2.

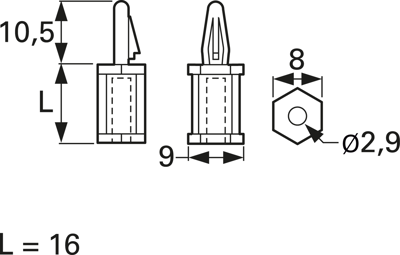

Type: 2463AA00, L 16 mm.
Technical specifications
| Version | spacer | |
| External thread length | 8 mm | |
| Hole size | 4 mm | |
| Bolt length | 16 mm | |
| Colour | natural | |
| Thread size | 2.9 mm | |
| Material | PA | |
| Panel thickness | 2 mm |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
