6166AA00AS | fastpoint
Spacer for circuit board, self-adhesive, 5.5 mm, plain, UL94 V-2
Order No.: 17H9636
EAN: 4099889464498
MPN:
6166AA00AS
Unit Price (€ / pc.)
0.1964 € *
Available: 900 pcs.
Leadtime: 5 Weeks **
Total Price:
0.20 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1964 €
10 pcs.
0.1714 €
100 pcs.
0.1535 €
500 pcs.
0.1345 €
1000 pcs.
0.1107 €
*incl. VAT plus shipping costs
**Subject to prior sale

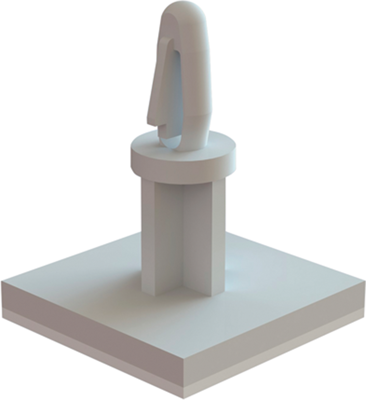

PCB spacer, 6166AA00AS, fastpoint
Snap-on mount on PCBs; PCB thickness: 1.2 to 1.7 mm. PCB perforation: 4.0 mm. Socket dimensions: 20 x 20 mm. Material: PA 6.6, UL94 V-2. Color: plain. Adhesive tape: 0.9 mm PE foam substrate with acrylate adhesive. Inflammability: UL94 V-2.

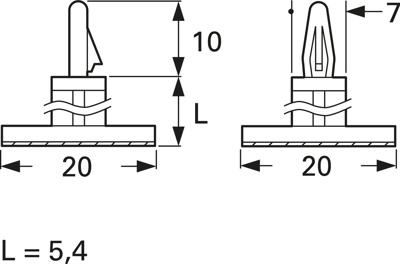

Technical attributes (type, dimension L): 6166AA00 AS, L 5.4 mm.
Technical specifications
| Version | spacer | |
| External thread length | 10 mm | |
| Hole size | 4 mm | |
| Bolt length | 5.4 mm | |
| Colour | natural | |
| Material | PA | |
| Panel thickness | 1.7 mm |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
