10096BB0105.0 | fastpoint

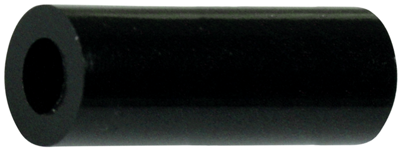

Spacer sleeve, Spacer sleeve, M3, 5 mm, PA, 10096BB0105.0
Order No.: 18H5049
EAN: 4099889494686
MPN:
10096BB0105.0
Distanzhülse M3,AD6,0, L5,0
Unit Price (€ / pc.)
0.1642 € *
Available: 15,788 pcs.
Leadtime: 5 Weeks **
Total Price:
0.16 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1642 €
10 pcs.
0.1488 €
100 pcs.
0.1345 €
500 pcs.
0.1047 €
1000 pcs.
0.0833 €
*incl. VAT plus shipping costs
**Subject to prior sale
Spacer rolls, polyamide, type Fastpoint 10.
Material: PA 6 25 % GV. Thermal resistance: –35 to +110 °C. Inflammability: UL 94 HB. Color: black type. Table index, type, for screw, length (L), outer diameter (OD), inner diameter (Id).

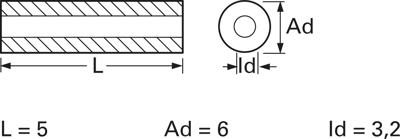

Type: 10096BB0105.0, M 3, L 5.0, OD 6.0, Id 3.2 mm
Technical specifications
| Version | Spacer sleeve | |
| Outer diameter | 6 mm | |
| Design | round | |
| Bolt length | 5 mm | |
| Colour | black | |
| Thread size | M3 | |
| Inner diameter | 3.2 mm | |
| Length | 5 mm | |
| Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
