0402AS-016J-08 | Fastron
RF choke, SMD 0402, 16 nH, 560 mA, 0402AS-016J-08
Unit Price (€ / pc.)
0.3808 € *
Available: 0 pcs.
Available in 4 Days: 1,915 pcs.
Leadtime: 18 Weeks **

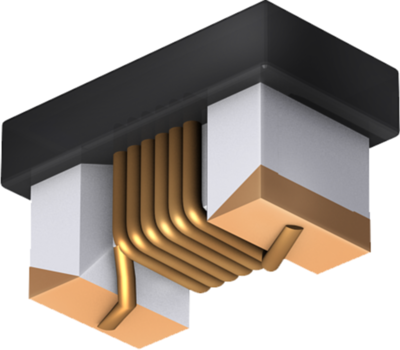

RF inductor, 0402AS-016J-08, Fastron
This wire wound chip inductor is designed for radio frequency (RF) applications that require optimal Q on high frequency circuits. Its gold flash pad metallization provides better solderability for a higher yield in production. Additionally, their encapsulation not only protects the winding but also allows for surface mount assembly.
Applications
- Mobile telecommunication
- Automotive subsystems
- Wireless communication
Technical specifications
| Version | RF choke | |
| Design | SMD 0402 | |
| Width | 0.65 mm | |
| DC current | 560 mA | |
| DC resistance | 220 mΩ | |
| Quality Q | Q 24 | |
| Height | 0.7 mm | |
| Inductance | 16 nH | |
| Length | 1.2 mm | |
| Measuring frequency | 250 MHz | |
| Tolerance | ±5 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
