0402AS-5N6J-08 | Fastron

RF choke, SMD 0402, 5.6 nH, 760 mA, 0402AS-5N6J-08

Order No.: 76D2620
EAN: 4099889042788
MPN:
0402AS-5N6J-08
Series: 0402AS
Fastron

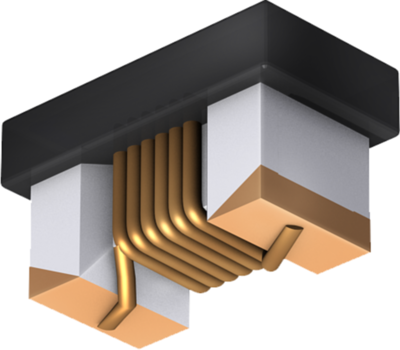

0402AS-5N6J-08 Fastron Fixed Inductors Image 1
0402AS-5N6J-08 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.2975 € *
Available: 0 pcs.
Available in 4 Days: 1,000 pcs.
Leadtime: 18 Weeks **
Total Price:
0.30 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
0.2975 €

SMD inductor, 0402AS-5N6J-08, FASTRON

The 0402AS-5N6J-08 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.

Applications

  • Oscillator and signal generators
  • Mobile telecommunication
  • Automotive Subsystems
  • Wireless communication
Technical specifications
Version RF choke
Design SMD 0402
Width 0.65 mm
DC current 760 mA
DC resistance 110 mΩ
Quality Q Q 22
Height 0.7 mm
Inductance 5.6 nH
Length 1.2 mm
Measuring frequency 250 MHz
Tolerance ±5 %
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
