0402AS-8N7J-08 | Fastron
RF choke, SMD 0402, 8.7 nH, 681 mA, 0402AS-8N7J-08
Unit Price (€ / pc.)
0.3808 € *
Available: 0 pcs.
Available in 4 Days: 1,908 pcs.
Leadtime: 18 Weeks **

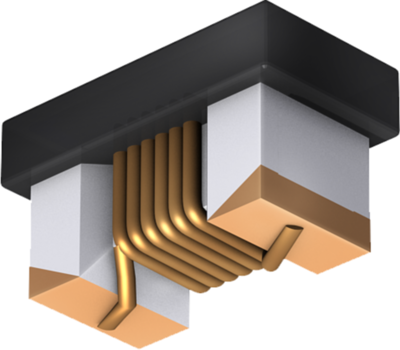

RF inductor, 0402AS-8N7J-08, Fastron
This wire wound chip inductor is designed for radio frequency (RF) applications that require optimal Q on high frequency circuits. Its gold flash pad metallization provides better solderability for a higher yield in production. Additionally, their encapsulation not only protects the winding but also allows for surface mount assembly.
Applications
- Mobile telecommunication
- Automotive subsystems
- Wireless communication
Technical specifications
| Ausführung | HF-Drossel | |
| Bauform | SMD 0402 | |
| Breite | 0.65 mm | |
| Gleichstrom | 681 mA | |
| Gleichstromwiderstand | 160 mΩ | |
| Gütefaktor Q | Q 22 | |
| Höhe | 0.7 mm | |
| Induktivität | 8.7 nH | |
| Länge | 1.2 mm | |
| Messfrequenz | 250 MHz | |
| Toleranz | ±5 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Rolle mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
