0402AS-R22K-08 | Fastron

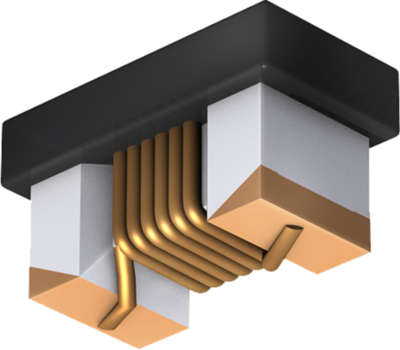

RF choke, SMD 0402, 220 nH, 50 mA, 0402AS-R22K-08
Unit Price (€ / pc.)
0.4641 € *
Available: 0 pcs.
Available in 4 Days: 1,716 pcs.
Leadtime: 18 Weeks **
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4641 €
10 pcs.
0.3332 €
100 pcs.
0.2808 €
500 pcs.
0.2463 €
1000 pcs.
0.2225 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD-Inductor, 0402AS-R22K-08, Fastron
The 0402AS-2N2K-08 is used as energy storage devices in switched-mode power devices to produce DC current.
Features
- Wire wound chip inductors are designed particularly for RF applications that require optimal Q on high frequency circuits
- Its gold flash pad metallization provides better solderability for a higher yield in your production
- In addition, their encapsulation not only protects the winding but also allows surface mount assembly
- It comes in compact sizes (from 0402 to 1812) available in reel packing
Applications
- Used in LC resonant circuits such as oscillator and signal generators, impendance matching, RF filters etc.
- Mobile Telecommunication: GSM, CDMA, TCDMA, cordless phones, 2 way radio
- Automotive Subsystems: TPMS, Keyless Entry, Anti-Theft, GPS
- Wireless Communication: W-LAN, WIFI, WIMAX, RFID, Bluetooth
- Non-magnetic versions for medical imaging applications: ASM series
Technical specifications
| Ausführung | HF-Drossel | |
| Bauform | SMD 0402 | |
| Breite | 0.65 mm | |
| Gleichstrom | 50 mA | |
| Gleichstromwiderstand | 2 Ω | |
| Gütefaktor Q | Q 10 | |
| Höhe | 0.7 mm | |
| Induktivität | 220 nH | |
| Länge | 1.2 mm | |
| Messfrequenz | 50 MHz | |
| Toleranz | ±10 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Rolle mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
