0603AS-R22J-08 | Fastron
RF choke, SMD 0603, 220 nH, 200 mA, 0603AS-R22J-08
Unit Price (€ / pc.)
0.3927 € *
Available: 0 pcs.
Available in 4 Days: 4,000 pcs.
Leadtime: 18 Weeks **
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3927 €
10 pcs.
0.2713 €
100 pcs.
0.2428 €
500 pcs.
0.2142 €
1000 pcs.
0.2011 €
*incl. VAT plus shipping costs
**Subject to prior sale

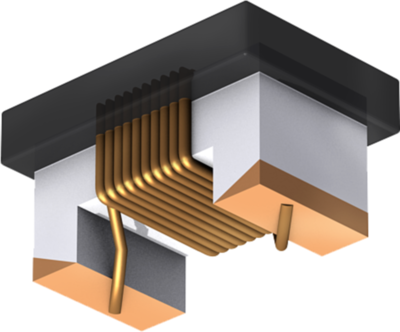

RF inductor, 0603AS-R22J-08, FASTRON
The 0603AS-R22J-08 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Applications
- Oscillator and signal generators
- Mobile telecommunication
- Automotive Subsystems
- Wireless communication

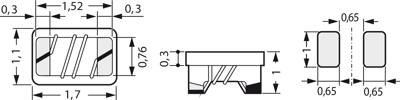

Technical specifications
| Ausführung | HF-Drossel | |
| Bauform | SMD 0603 | |
| Breite | 1.1 mm | |
| Gleichstrom | 200 mA | |
| Gleichstromwiderstand | 1.6 Ω | |
| Gütefaktor Q | Q 30 | |
| Höhe | 1 mm | |
| Induktivität | 220 nH | |
| Länge | 1.7 mm | |
| Messfrequenz | 100 MHz | |
| Toleranz | ±5 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Rolle mit 1 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
