0805AS-R22J-01 | Fastron
RF choke, SMD 0805, 220 nH, 400 mA, 0805AS-R22J-01
Unit Price (€ / pc.)
0.3689 € *
Available: 1,940 pcs.
Leadtime: 10 Weeks **
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3689 €
50 pcs.
0.2642 €
250 pcs.
0.2213 €
1000 pcs.
0.1892 €
2500 pcs.
0.1654 €
*incl. VAT plus shipping costs
**Subject to prior sale

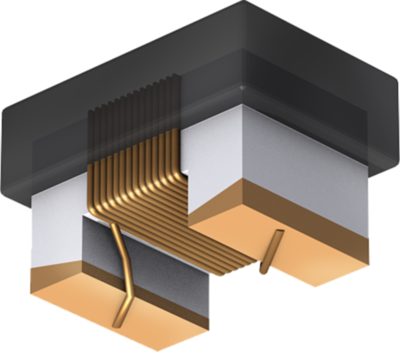

Chip inductor, type Fastron 0805AS./0805AQ./0805F.
Size 0805, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.
With ceramic carrier material, type 0805AS.
Technical specifications
| Ausführung | HF-Drossel | |
| Bauform | SMD 0805 | |
| Breite | 1.8 mm | |
| Gleichstrom | 400 mA | |
| Gleichstromwiderstand | 0.7 Ω | |
| Gütefaktor Q | Q 59 | |
| Höhe | 1.6 mm | |
| Induktivität | 220 nH | |
| Länge | 2.3 mm | |
| Messfrequenz | 250 MHz | |
| Toleranz | ±5 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Rolle mit 2.500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
