0805AS-R56J-01 | Fastron
RF choke, SMD 0805, 560 nH, 170 mA, 0805AS-R56J-01
Unit Price (€ / pc.)
0.2868 € *
Available: 0 pcs.
Leadtime: On Request **
RF inductor, 0805AS-R56J-01, Fastron

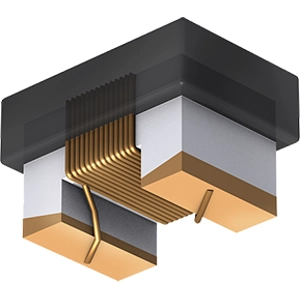

This wire wound chip inductor is designed for radio frequency (RF) applications that require optimal Q on high frequency circuits. Its gold flash pad metallization provides better solderability for a higher yield in production. Additionally, their encapsulation not only protects the winding but also allows for surface mount assembly.
Applications
- Mobile telecommunication
- Automotive subsystems
- Wireless communication
Technical specifications
| Ausführung | HF-Drossel | |
| Bauform | SMD 0805 | |
| Breite | 1.8 mm | |
| Gleichstrom | 170 mA | |
| Gleichstromwiderstand | 3.5 Ω | |
| Gütefaktor Q | Q 40 | |
| Höhe | 1.6 mm | |
| Induktivität | 560 nH | |
| Länge | 2.3 mm | |
| Messfrequenz | 100 MHz | |
| Toleranz | ±5 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Rolle mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
