0805F-1R0K-01 | Fastron
RF choke, SMD 0805, 1 µH, 250 mA, 0805F-1R0K-01
Unit Price (€ / pc.)
0.6664 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6664 €
10 pcs.
0.4165 €
50 pcs.
0.3570 €
250 pcs.
0.3070 €
1000 pcs.
0.2761 €
*incl. VAT plus shipping costs
**Subject to prior sale

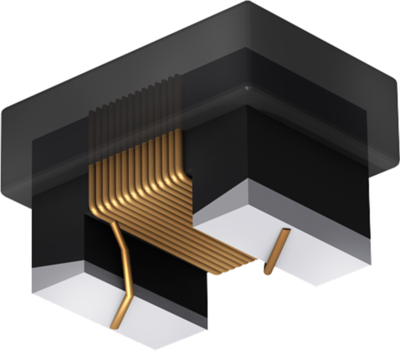

Chip inductor, type Fastron 0805AS./0805AQ./0805F.
Size 0805, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.
With ferrite carrier material, type 0805F.
Technical specifications
| Ausführung | HF-Drossel | |
| Bauform | SMD 0805 | |
| Breite | 1.8 mm | |
| Gleichstrom | 250 mA | |
| Gleichstromwiderstand | 0.5 Ω | |
| Gütefaktor Q | Q 20 | |
| Höhe | 1.6 mm | |
| Induktivität | 1 µH | |
| Länge | 2.3 mm | |
| Messfrequenz | 7.9 MHz | |
| Toleranz | ±10 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Rolle mit 2.500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
