0805F-R68K-08 | Fastron

RF choke, SMD 0805, 680 nH, 450 mA, 0805F-R68K-08

Order No.: 74D3000
EAN: 4099889008838
MPN:
0805F-R68K-08
Series: 0805F
Fastron

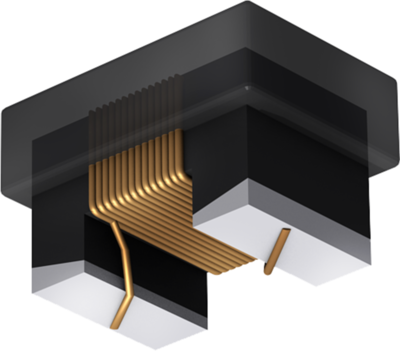

0805F-R68K-08 Fastron Fixed Inductors Image 1
0805F-R68K-08 Fastron Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version RF choke
Inductance 680 nH
DC current 450 mA
Tolerance ±10 %
DC resistance 0.5 Ω
Show 14 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Available in 4 Days: 2,500 pcs.
Leadtime: 18 Weeks **
Add to Cart
Total Price:
0.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2500 pcs.
0.3332 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Chip inductor, type Fastron 0805AS./0805AQ./0805F.

Size 0805, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.

With ferrite carrier material, type 0805F.
Technical specifications
Version RF choke
Design SMD 0805
Width 1.8 mm
DC current 450 mA
DC resistance 0.5 Ω
Quality Q Q 18
Height 1.6 mm
Inductance 680 nH
Length 2.3 mm
Measuring frequency 7.9 MHz
Tolerance ±10 %
Show similar products 0
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 1 piece
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
