09P-100K-50 | Fastron

Suppressor choke, radial, 10 µH, 7000 mA, 09P-100K-50

Order No.: 74D4061
EAN: 4099891560478
MPN:
09P-100K-50
Series: 09P
Fastron

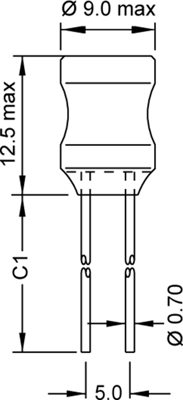

09P-100K-50 Fastron Fixed Inductors Image 1

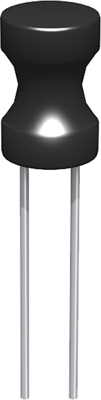

09P-100K-50 Fastron Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version suppressor choke
Inductance 10 µH
DC current 7000 mA
Tolerance ±10 %
DC resistance 0.03 Ω

Ordering Information:

Roll with 500 pieces
Show 28 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.7259 € *
Available: 0 pcs.
Available in 4 Days: 300 pcs.
Leadtime: 18 Weeks **
Add to Cart
Total Price:
0.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
0.7259 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Version suppressor choke
Design radial
Width 9 mm
DC current 7000 mA
DC resistance 0.03 Ω
Quality Q Q 70
Height 12.5 mm
Inductance 10 µH
Measuring frequency 2.52 MHz
Tolerance ±10 %
Show similar products 0
Logistics
Country of origin MY
Customs tariff number 85045000
MSL MSL 1
Original Packaging Reel with 500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
