1008F-1R0K-01 | Fastron

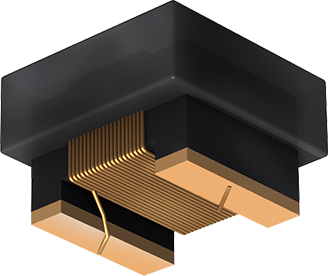

RF choke, SMD 1008, 1 µH, 500 mA, 1008F-1R0K-01
Unit Price (€ / pc.)
0.3927 € *
Available: 0 pcs.
Available in 4 Days: 302 pcs.
Leadtime: 18 Weeks **
RF inductor, 1008F-1R0K-01, Fastron
This wire wound chip inductor is designed for radio frequency (RF) applications that require optimal Q on high frequency circuits. Its gold flash pad metallization provides better solderability for a higher yield in production. Additionally, their encapsulation not only protects the winding but also allows for surface mount assembly.
Applications
- Mobile telecommunication
- Automotive subsystems
- Wireless communication
Technical specifications
| Ausführung | HF-Drossel | |
| Bauform | SMD 1008 | |
| Breite | 2.8 mm | |
| Gleichstrom | 500 mA | |
| Gleichstromwiderstand | 0.32 Ω | |
| Gütefaktor Q | Q 15 | |
| Höhe | 2.1 mm | |
| Induktivität | 1 µH | |
| Länge | 2.9 mm | |
| Messfrequenz | 7.9 MHz | |
| Toleranz | ±10 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Rolle mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
