11P-101K-50 | Fastron

Suppressor choke, radial, 100 µH, 950 mA, 11P-101K-50

Order No.: 74D4153
EAN: 4099891560515
MPN:
11P-101K-50
Series: 11P
Fastron

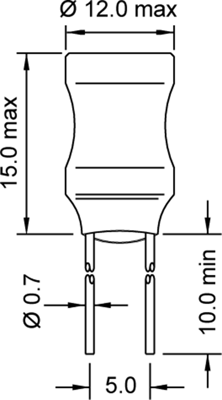

11P-101K-50 Fastron Fixed Inductors Image 1

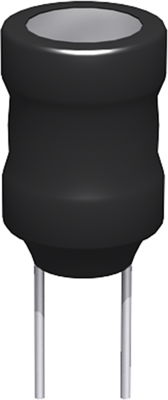

11P-101K-50 Fastron Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version suppressor choke
Inductance 100 µH
DC current 950 mA
Tolerance ±10 %
DC resistance 0.2 Ω

Ordering Information:

Roll with 250 pieces
Show 19 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.0948 € *
Available: 0 pcs.
Available in 4 Days: 200 pcs.
Leadtime: 18 Weeks **
Add to Cart
Total Price:
1.09 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
1.0948 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Version suppressor choke
Design radial
Width 12 mm
DC current 950 mA
DC resistance 0.2 Ω
Height 15 mm
Inductance 100 µH
Tolerance ±10 %
Show similar products 0
Logistics
Country of origin MY
Customs tariff number 85045000
MSL MSL 1
Original Packaging Reel with 250 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
