11PHC-393K-50 | Fastron

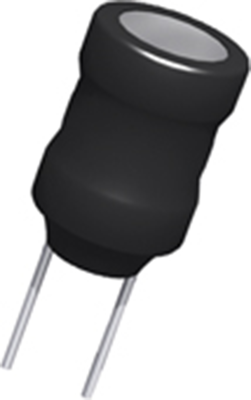

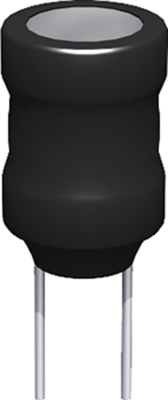

Suppressor choke, radial, 39 mH, 80 mA, 11PHC-393K-50
Unit Price (€ / pc.)
1.071 € *
Available: 0 pcs.
Available in 4 Days: 199 pcs.
Leadtime: 18 Weeks **
Suppressor inductor, 11PHC-393K-50, FASTRON
The 11PHC-393K-50 is an inductor that is a passive electronic component which is capable of storing electrical energy in the form of magnetic energy.
Features
- High Q
- High current
- High voltage
Applications
- DC-DC converter
- Digital amplifier LPF
- Signal filtering
Technical specifications
| Version | suppressor choke | |
| Design | radial | |
| DC current | 80 mA | |
| DC resistance | 84 Ω | |

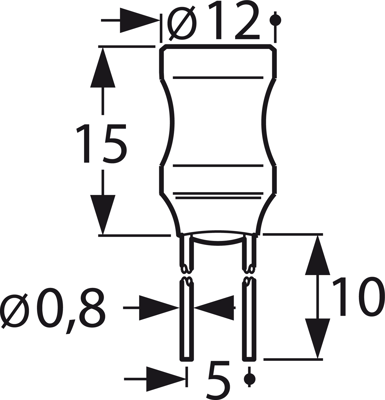

| Height | 15 mm | |
| Inductance | 39 mH | |
| Measuring frequency | 20 kHz | |
| Saturation current | 0.12 A | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85045000 |
| Original Packaging | Carton with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
