1210AS-R82J-01 | Fastron
RF choke, SMD 1210, 820 nH, 350 mA, 1210AS-R82J-01
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Available in 4 Days: 71 pcs.
Leadtime: 18 Weeks **

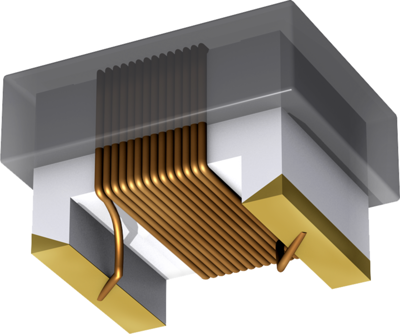

Chip inductor for RF applications, type Fastron 1210AS./1210F.
Size 1210, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.
With ceramic carrier material, type 1210AS.
Technical specifications
| Version | RF choke | |
| Design | SMD 1210 | |
| Width | 3 mm | |
| DC current | 350 mA | |
| DC resistance | 1.93 Ω | |
| Quality Q | Q 45 | |
| Height | 2.4 mm | |
| Inductance | 820 nH | |
| Length | 3.8 mm | |
| Measuring frequency | 100 MHz | |
| Tolerance | ±5 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
