1212FPS-470N-01 | Fastron

Power choke, SMD 1212, 47 µH, 400 mA, 1212FPS-470N-01

Order No.: 74D3610
EAN: 4099889010046
MPN:
1212FPS-470N-01
Series: 1212FPS
Fastron

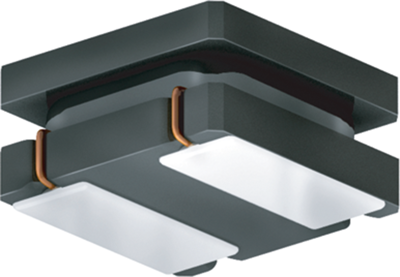

1212FPS-470N-01 Fastron Fixed Inductors Image 1

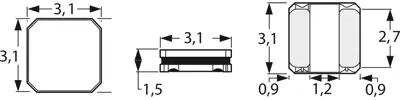

1212FPS-470N-01 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
1.1424 € *
Available: 726 pcs.
Leadtime: 18 Weeks **
Total Price:
1.14 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1424 €
10 pcs.
0.7140 €
50 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD Power inductor, 1212FPS-470N-01, Fastron

Chip Type

Features

  • The chip power inductor 1212FPS-470N-01 is equipped with a high flux density ferrite core
  • Small footprints 3x3, 4x4, 6x6 mm and flat flat profile
  • The Inductance range is from 0,5µH to 220µH
  • Rated Current up to 6.5A
  • The Models are magnetically shielded with a newly developed Ferrite-Epoxy resin
  • These Inductors provide good solderability with lead free tinned Terminals and are RoHS compliant

Applications

  • Suitable for circuits where high current saturation is critical
  • When small size matters, only 1.5 mm and higher profile for DC/DC converters, for example in portable devices
  • Backlight for Tablet Displays
Technical specifications
Version power choke
Design SMD 1212
Width 3.1 mm
DC current 400 mA
DC resistance 1.406 Ω
Height 1.5 mm
Inductance 47 µH
Length 3.1 mm
Saturation current 320 mA
Tolerance ±30 %
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 2,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
